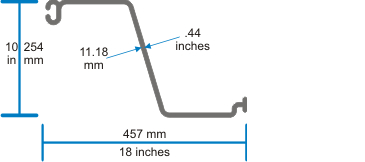

TW85 2D Drawing






TW85
Standard color
Light gray
Custom colors
Clay, Slate, Others
UV Protection
TW85 is made from highly weatherable, UV-stabilized rigid PVC
60 Year Warranty
TW85 is covered by a transferable Limited 60 year Warranty that protects against manufacturing defects
    Standard Metric
Constituent Material
PVC, Exterior Grade Rigid Only
PVC, Exterior Grade Rigid Only
Section Width (W)
18 inches
457 mm
Section Depth (D)
10 inches
254 mm
Section Thickness (T)
.440 inches
11.18 mm
Weight
8.33 lbs/lineal foot
12.06 kg/lineal meter
Moment of Inertia
166.3 in4/ft
22,709 cm4/m
Section Modulus
31.95 in3/ft
1,717 cm3/m
Ultimate Moment
17,306 ft-lb/ft
7,948 kg-m/m
Allowable Moment
8,653 ft-lbs/ft
3,980 kg-m/m
Tensile Strength ASTM-D638
6,500 lbs/in2
44.8 Mpa
Flexural Strength ASTM-D790
11,140 Psi
78.0 Mpa
Modulus of Elasticity ASTM-D790
380,000 Psi
2,620 Mpa
Notched Izod Impact ASTM-D256
13.75 lbs/in
2.46 kg/cm
Heat Deflection Temp. ASTM-D648
158 degrees F
70 degrees C
